- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5G LAN with Wi-Fi 7 Solution
- Stock: In Stock
- Brand: INTEL
- Model: MPG Z790 EDGE TI MAX WIFI
| Basic Information | |
| Chipset | INTEL Z790 |
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Connector & Ports | |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4**, MLO, 4KQAM |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
| Interface | |
| HDMI | 1x HDMI 2.1 |
| Memory | |
| Maximum Memory | 192GB |
| Slots | 4 x DIMM |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| Others | |
| Special Features | 4x EZ Debug LED 1x EZ LED Control switch |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

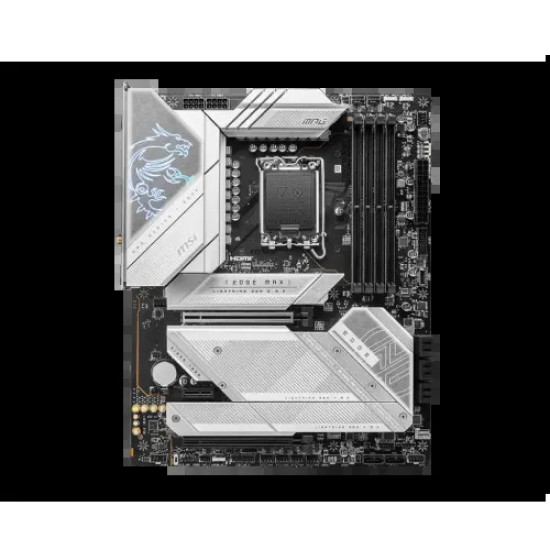

MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard
The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-performance motherboard that supports Intel Core 14th/13th/12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. With its PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2, it also supports DDR5 Memory at speeds of up to 7800+(OC) MHz, giving a lightning-fast gaming experience. With a 16+1+1 Mirrored Power Arrangement, two 8-pin CPU power connections, Core Boost, and Memory Boost, the motherboard has an increased power architecture. It also boasts a premium thermal solution, which includes a larger heatsink with heat-pipe, MOSFET thermal pads certified for 7W/mk, extra choke thermal pads, and M.2 Shield Frozr, which ensures great performance and a non-stop gaming experience. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard also has a 2.5G LAN and Wi-Fi 7 Solution, giving a secure, reliable, and fast network connection. It also boasts AUDIO BOOST 5, which provides studio-grade sound quality for the most immersive gaming experience. The motherboard is constructed with a high-quality PCB, a 6-layer PCB composed of server-grade level material, and has a pre-installed I/O Shield, which provides greater EMI protection and ease of installation. The MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard is a high-end motherboard with great performance and features for both gamers and professionals.
Buy MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard Shop in BD
In Bangladesh, you can get the original MSI MPG Z790 EDGE TI MAX WIFI DDR5 ATX Motherboard From Techtonic. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Techtonic Shop to get yours at lowest price. The MSI MPG Z790 EDGE TI MAX WIFI Motherboard comes with 3 years warranty.
