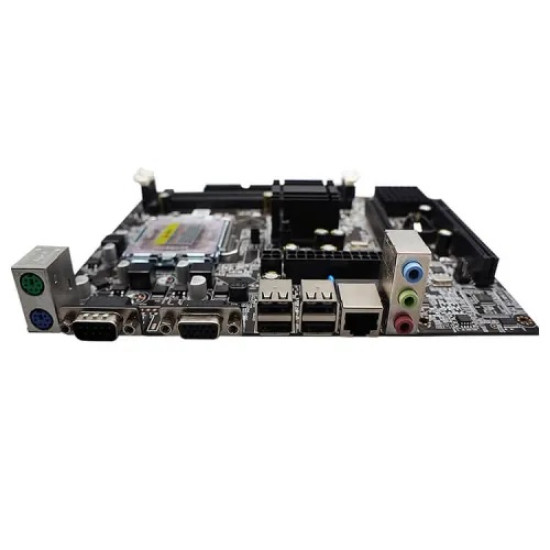

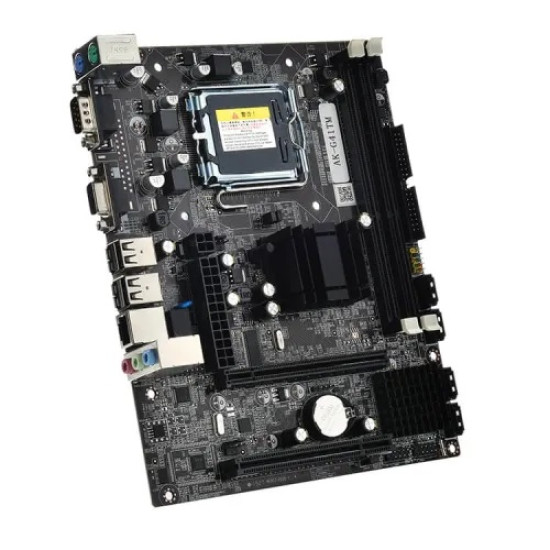

ARKTEK AK-G41M EL LGA775 Micro-ATX Motherboard

Request more info

Basic Information
Audio	Realtek ALC 662 6-Channel High Definition Audio
Chipset	North Bridge: Intel G41 Chipset, South Bridge: Intel ICH7 Chipset
Form Factor	Micro-ATX (21.3 x 16,9 cm)
Supported CPU	Support Intel Socket 775 for Core 2 Duo/Core Duo/Pentium 4/Pentium D/Celeron D Processors
Connector & Ports
Audio	3 x Audio jack
LAN Port (s)	Realtek 8105E 10/100M LAN on board
Supported Storage	3 x SATA, 1xM.2 supports NVME+NGFF
USB (s)	4 x USB 2.0 port
VGA	1 x VGA port
Expansion Slots
PCI	1 x PCI Express x16 slot 1 x PCI E x1 slot
Graphics
Graphics	Integrated Graphics Processor
Memory
Maximum Memory	Max. 4GB
Slots	2 x Memory Slots
Supported Memory	DDR3 1333/1066 MHz
Type	DDR3
Warranty Information
Manufacturing Warranty	2 Year

ARKTEK AK-G41M EL LGA775 Micro-ATX Motherboard

The ARKTEK AK-G41M EL LGA775 Micro-ATX Motherboard is designed to support Intel Socket 775 processors, including Core 2 Duo, Core Duo, Pentium 4, Pentium D, and Celeron D processors. It utilizes the Intel G41 and ICH7 chipsets for the North Bridge and South Bridge, respectively. The motherboard features integrated graphics processing, supports DDR3 memory, and provides LAN connectivity and audio functions. It offers four SATA ports for storage devices and includes various I/O ports for connections. With its micro-ATX form factor and secure mounting holes, the AK-G41M EL is suitable for compact PC builds.

The ARKTEK AK-G41M EL Motherboard comes with 2 years warranty.

Tags: ARKTEK , AK-G41M EL , MOTHERBOARD , INTEL SOCKET , INTEL CHIPSET , DDR3 , MICRO-ATX , ARKTEK AK-G41M EL MOTHERBOARD.
